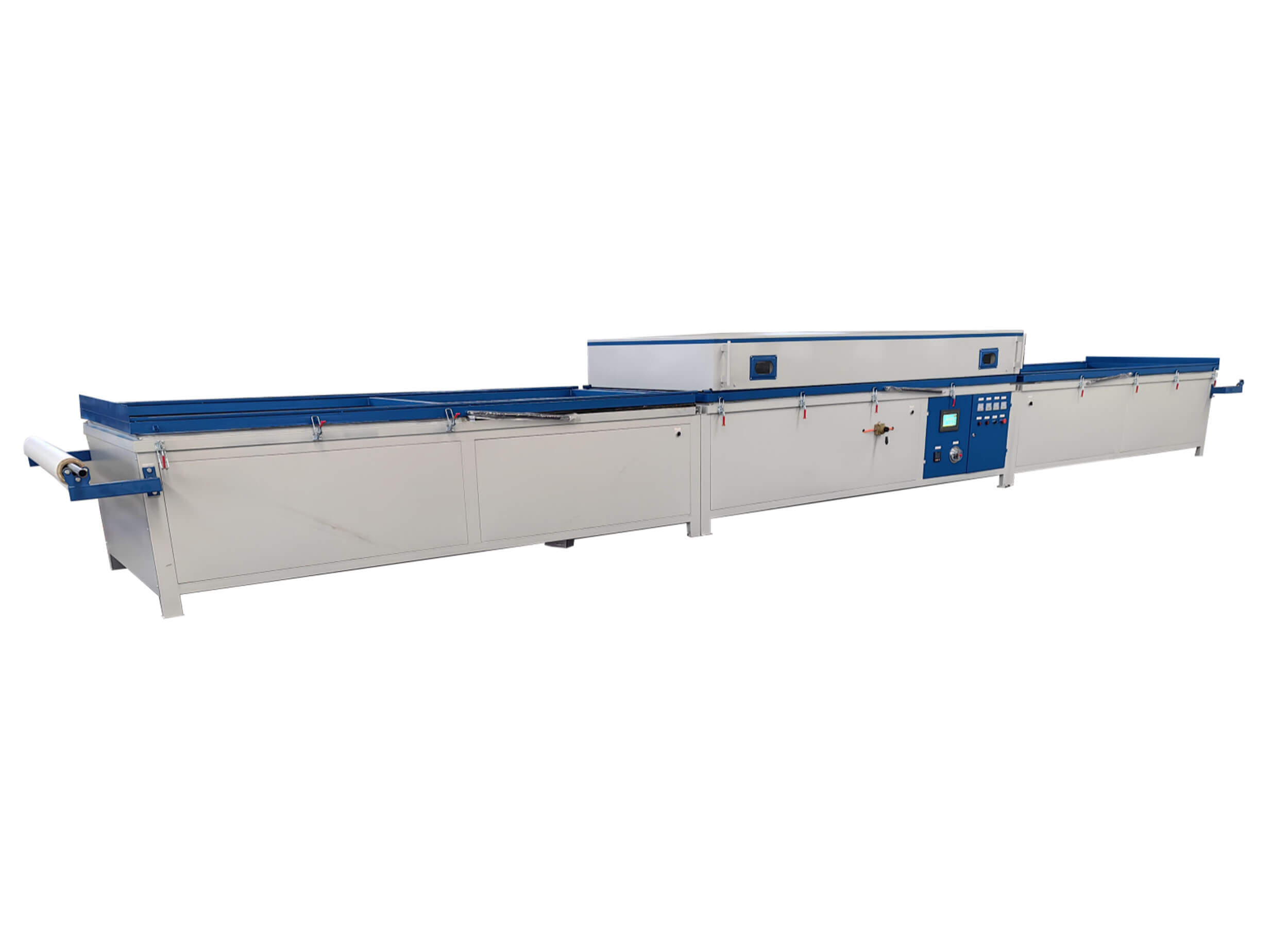

3-station Vacuum Laminating Machine

Our 3-station vacuum laminating machine is a high-efficiency membrane pressing solution built for furniture manufacturers. It applies heat and stable vacuum pressure to soften decorative PVC film, so the film perfectly adheres to all contours, grooves and curved surfaces of wooden substrates, delivering bubble-free and wrinkle-free finished panels.

With three independent workbenches, the machine supports alternating loading, unloading and processing at the same time. Operators can place new workpieces on one station while other stations complete the heating and laminating cycle, eliminating idle waiting time and greatly boosting continuous production capacity.

Equipped with an automatically moving thermal module and touchscreen control panel, it supports manual and automatic adjustment of temperature and vacuum. Multiple preset program slots allow quick recipe switching for different films and workpiece styles. It comes with complete safety protection systems including overload protection, emergency stop button and limit switches to secure daily operation. The quick-release film fixing design simplifies film replacement and shortens setup time. It is ideal equipment for medium.

Product Description

3-station alternating working design for uninterrupted mass production
Vacuum thermal forming for 3D shaped panels, smooth lamination without bubbles or wrinkles
Touchscreen control with storage of multiple preset programs for fast style switching
Mobile heating module for uniform heating across the whole work area
Manual & automatic dual mode for temperature and vacuum adjustment
Full safety protection: overload shutdown, emergency stop and limit switch
Quick-release film clamping structure to save film changing time

Workbench length, mm	3000/3000/3000(inner diameter)
Workbench width, mm	1400 (outer diameter) 1250 (inner diameter)
Worktable depth , mm	50-60
Workbench load capacity, kg	900
Vacuum pump capacity, m³/h	100
Maximum pressing pressure, t/m2	9.0
Maximum temperature in the studio, °C	180
Maintain the tolerance for a given temperature (indoors), °C	± 5
Number of workbenches	3
Number of mobile thermal modules	1
Direction of movement of the mobile thermal module	Move automatically along the desktop
Number of temperature sensors	One fixed thermocouple is installed in the working heating area.
Control screen diagonal, inches	7-9
Color execution of printing press	Primer, topcoat gray, light blue equipment paint
Open the pressure frame	Manual
Fixed film	Use the eyelet for rapid release (⌀15-17 mm)
Install thermocouples	Quick release
Height-adjustable mounting bracket, mm	≥ 10
A system that stores errors in historical records	≥ 100
Number of storage slots for automatic control program	≥ 10
Adjust heating temperature	Manual/Automatic
Vacuum regulation	Manual/Automatic
Adjust the radiation power of the lamps	Automatic
Connecting a portable thermocouple	thermal module limit switch
Equipment overload protection	Automatic shutdown when load exceeds 105%
Emergency system	Emergency stop button thermal module limit switch Manual pressure release
Control unit protection level	IP54
controller	– inch touchscreen
