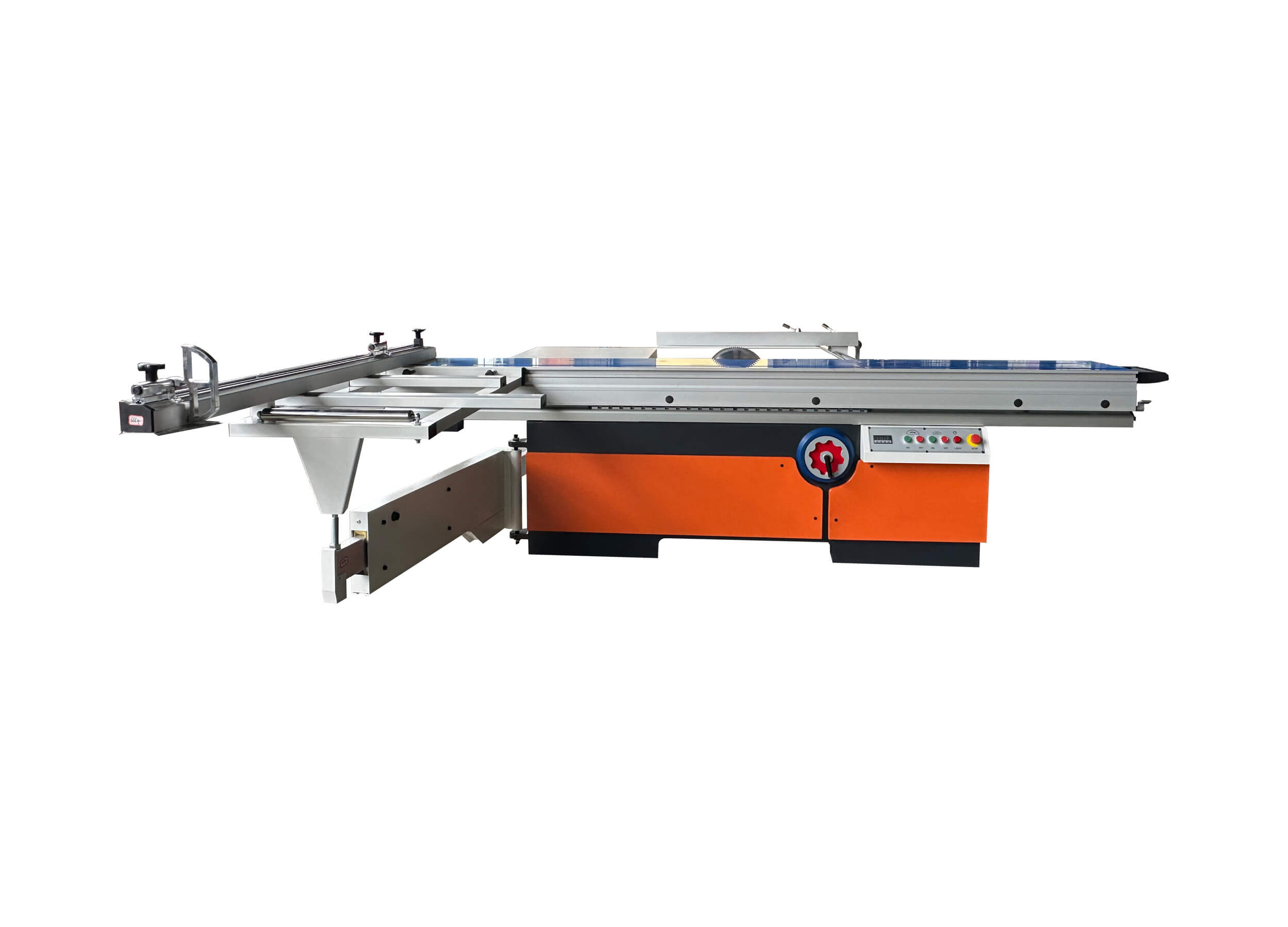

Panel-saw-S3200

The Panel-saw-S3200 sliding table panel saw is built with heavy-duty internal Markov bed, which provides excellent rigidity and greatly reduces vibration during long continuous cutting operations. The saw blade can be manually adjusted to 45 degrees, meeting diverse cutting demands for straight cuts and angled bevel cuts.

It features an ultra-wide aluminum sliding table plus enlarged auxiliary workbench, making it easy to load and feed large-size panels. The German craft HERO saw blade ensures neat cutting edges and effectively prevents chipping on veneered boards. The step-by-step locking structure keeps the sliding table locked firmly during cutting, while the built-in oiler maintains smooth sliding movement and extends service life.

This panel saw is designed for solid wood, plywood, MDF and decorative panels. It is a practical and reliable cutting machine for small and medium furniture workshops, cabinet makers and woodworking production lines.

Product Description

  • 3200mm long anodized sliding table, smooth movement for large panels
  • Dual-blade system (main saw + scoring saw), anti-chipping & clean cutting edges
  • Oriental fence with digital readout system, fast positioning and higher cutting accuracy
  • Saw blade tiltable from 0° to 45°, supports straight, bevel and angled cuts
  • Heavy-duty stress-relieved frame, high rigidity and stable long-term accuracy
  • Compatible with particle board, MDF, plywood, solid wood, acrylic, PVC & more
  • Simple operation with full safety guards, perfect for custom cabinet & panel furniture factories

Configuration

Bed structure Heavy Internal Markov structure
Saw blade adjustable angle 45 degrees adjustable
Motor 5.5+1.1kw motor
Lift type Manual adjustment
Saw blade set German craft HERO saw blade




Work surface and auxiliary arm

3200mm push table

390mm ultra-wide sliding table

190 large scales

Enlarged and widened auxiliary workbench

Aluminum alloy core puller

Sliding structure With step-by-step lock structure
Lubricating With oiler
Size 3400*1100*1200 mm
Weight 900 KG
Voltage 380V/220V/3P/50hz Supports 380V and 220V
