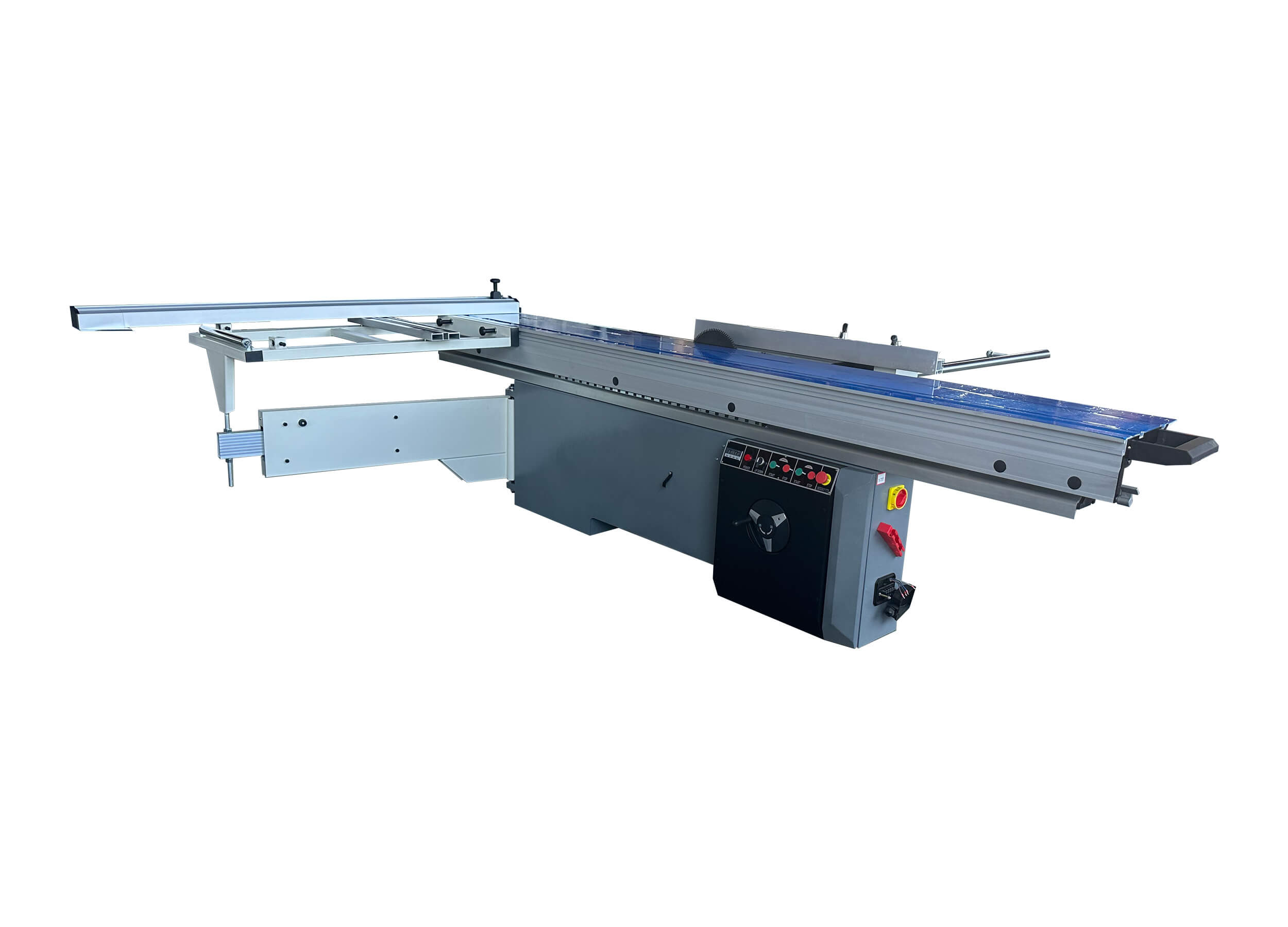

Panel Saw WA8-3200

This sliding table saw adopts a heavy internal Markov bed structure, offering excellent rigidity and stable performance during long-time cutting work. Equipped with double saw blades, it pre-scores the board surface before main cutting to avoid edge chipping and get smooth cutting edges.

The ultra-wide sliding table runs smoothly, with step-by-step locking design to lock material position firmly and ensure consistent cutting precision. It features enlarged auxiliary workbench and aluminum alloy core pusher for easy handling of large-size panels. The saw blade can be manually tilted to achieve angle cutting to meet different furniture making requirements. Built-in oiler keeps the sliding system well lubricated to extend service life.

Product Description

3200mm long anodized sliding table, smooth sliding and heavy load capacity
Dual-blade system (main saw + scoring saw), prevents chipping and delivers clean cuts
Saw blade tilts from 0° to 45°, supports straight, bevel and angled cutting
Heavy-duty stress-relieved frame, high rigidity, stable precision for long-time operation
Precision fence & scale system, guarantees consistent dimension for batch cutting
Compatible with MDF, particle board, plywood, solid wood, acrylic, PVC and more

Easy operation & complete safety guards, ideal for custom cabinet and panel furniture factories

Bed structure	Heavy Internal Markov structure
Saw blade adjustable angle	45 degrees adjustable
Motor	5.5+1.1kw motor
Lift type	Manual adjustment
Saw blade set	German craft HERO saw blade
Work surface and auxiliary arm	3200mm push table 390mm ultra-wide sliding table 190 large scales Enlarged and widened auxiliary workbench Aluminum alloy core puller
Sliding structure	With step-by-step lock structure
Lubricating	With oiler
Size	340011001200 mm
Weight	900 KG
Voltage	380V/220V/3P/50hz Supports 380V and 220V
