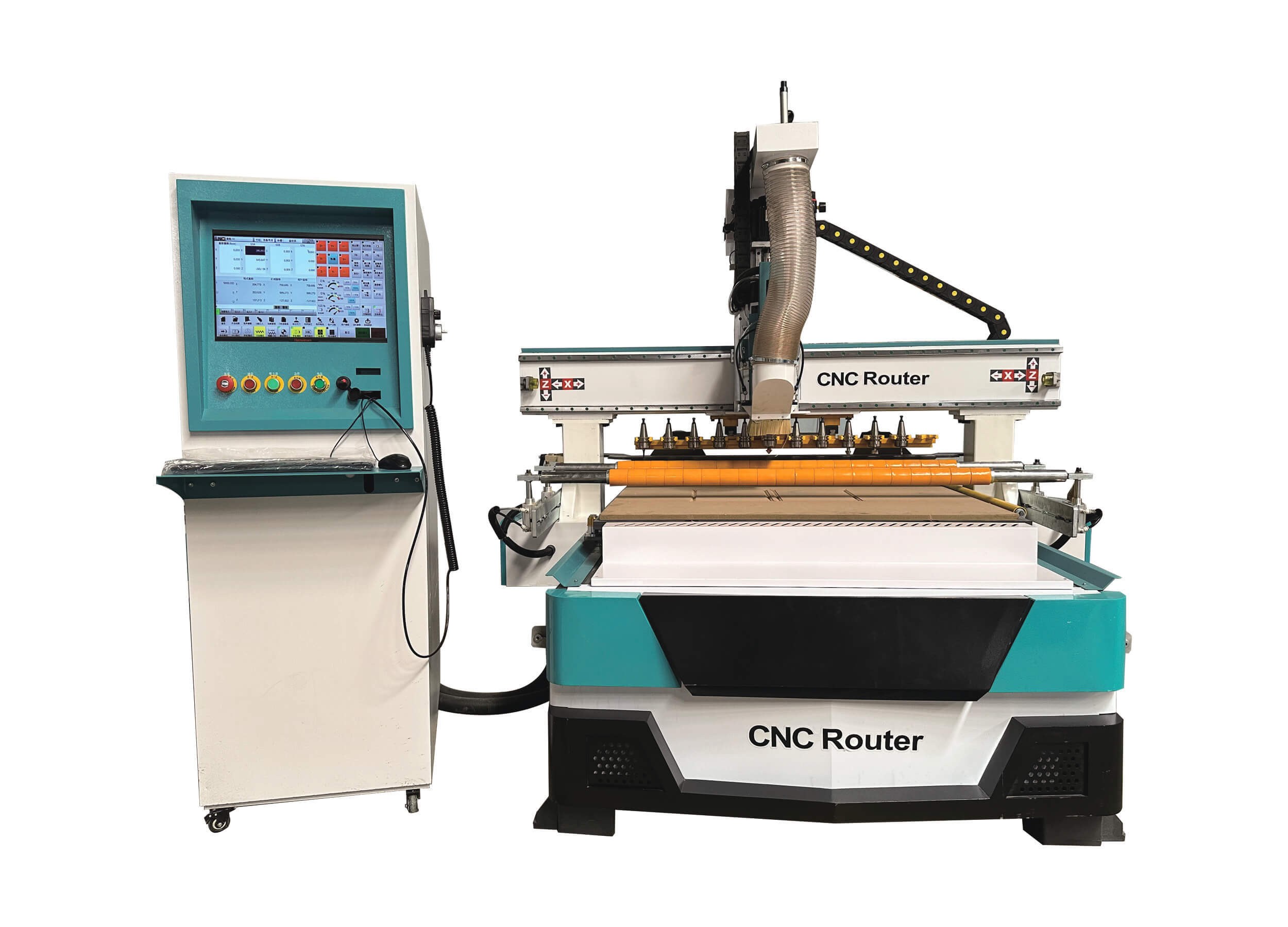

ATC CNC Router 1328

Our ATC CNC Router-1328 automatic tool change CNC router is engineered for high-volume panel furniture production. Featuring a traveling 8-slot tool magazine, the machine completes tool swapping automatically during machining, eliminating frequent manual tool changes and reducing downtime.

Powered by air-cooled HQD spindle and high-performance servo drive system, it ensures smooth cutting, clean edges and consistent precision on wood panels, MDF, plywood and composite boards. The vacuum worktable firmly holds workpieces together with pressure rollers to prevent material shifting during processing.

Adopted Taiwan LNC control system and top-tier branded electric components, this machine runs reliably for long continuous working hours. It handles a wide range of tasks including panel cutting, grooving, engraving, milling and hole drilling, perfectly matching the production demands of custom cabinets, wardrobes and wooden furniture workshops.

Product Description

Automatic Tool Change System: 8-position moving tool magazine, auto switch cutters for different processes, no manual tool replacement.
High Precision & Stable Cutting: Advanced servo motor drive ensures smooth movement, clean cutting surface and outstanding processing accuracy.
Strong Material Holding: Vacuum adsorption table plus pressure roller keeps panels fixed tightly, avoids displacement while cutting.
User-friendly Control: Mature LNC control system, simple operation, easy to edit and run machining programs.
Long-term Reliability: Famous brand electrical & guide rail components, stable performance for continuous heavy-duty production.
Multi-function Woodworking: Capable of cutting, grooving, engraving, milling and drilling for all kinds of wooden panels.

Item	Specification
Working dimensions	1300 x 2800 mm
Z-axis travel	200 mm
Control system	Taiwan LNC
Motors and drives	Leadshine AC servo motors and drives
Spindle	9 kw HQD air-cooled ATC spindle
Tool magazine	Traveling tool magazine (8-slot)
Inverter	Folinn
Guide rails	25 mm
Table surface	Vacuum table
Hold-down device	Pressure roller
Vacuum pump	7.5 kW water-circulating pump
Tool setting	Tool presetter
Electrical components	Schneider Electric
Limit switches	Omron
Voltage	380 V (customizable)
