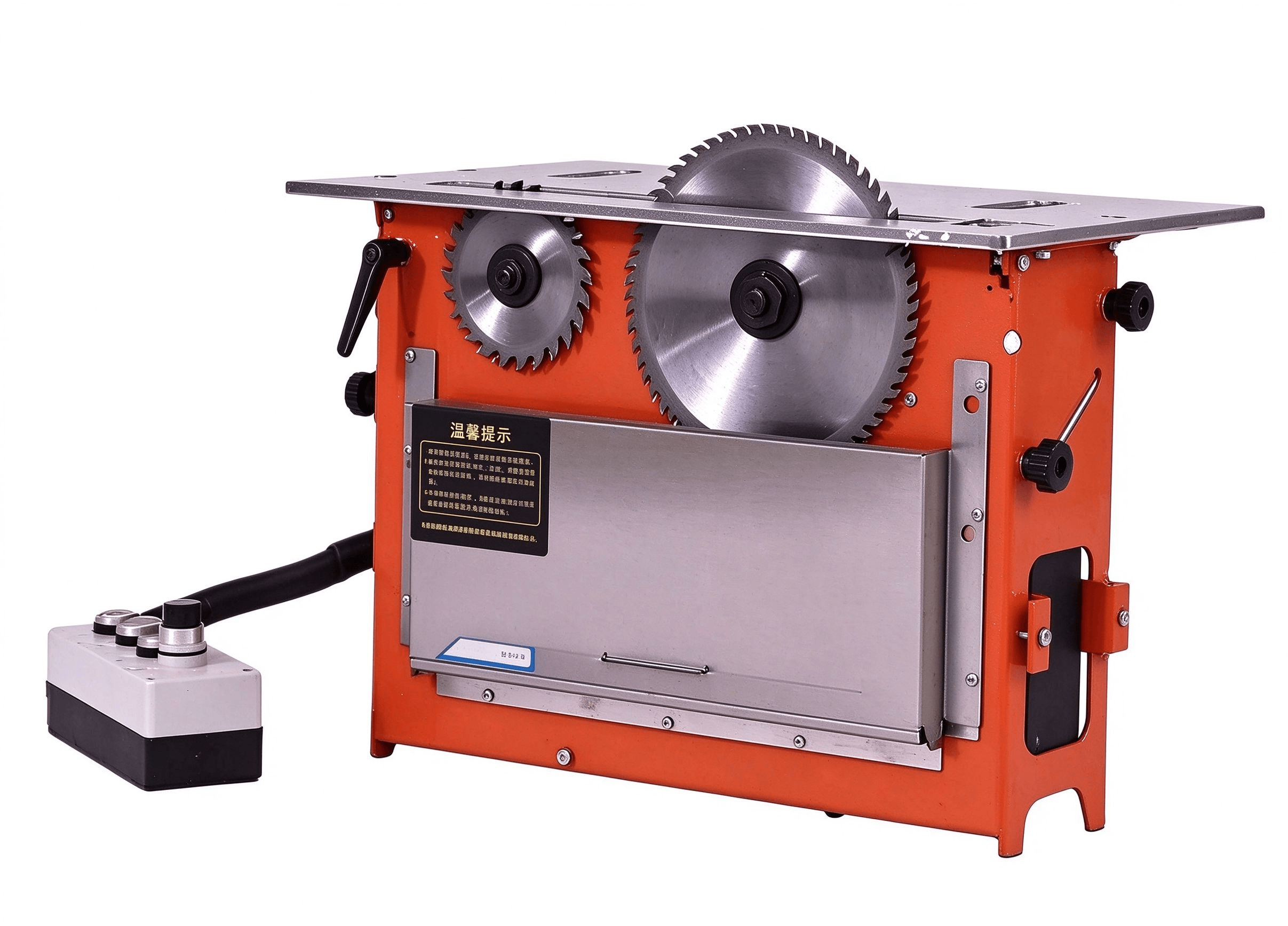

Dust-free Panel Saw
Our dust-free panel saw with main and scoring saw is engineered to solve the common problem of edge chipping on decorative panels during cutting. Equipped with independent scoring saw and main saw systems, it pre-scores the board surface before the main saw cuts through, which keeps the top veneer intact and produces smooth, splinter-free cutting results.
The whole machine adopts a compact and lightweight structure for easy movement and on-site operation. Its integrated dust collection design captures most cutting debris at the source to keep the working area clean and improve operator safety. The two saw units run independently at different rotating speeds, perfectly matching the cutting characteristics of various wood-based panels.
Simple adjustment knobs allow users to quickly set cutting depth and angle. It works great for cutting melamine boards, plywood, MDF and solid wood panels, widely used for custom cabinet, wardrobe and door making. It is a practical, cost-effective cutting solution for small-scale woodworking businesses and fitters.
Product Description
- Main saw + scoring saw design, anti-chipping cutting for veneered panels
- Built-in dust removal structure, low dust working environment
- Compact & portable, easy for on-site installation work
- Separate power and speed control for two saw blades
- Simple operation, fast depth & angle adjustment
- Suitable for melamine board, plywood, MDF and solid wood
| Weight | 23kg |
| Large saw | 2600W |
| Small saw | 1600W |
| Large saw speed | 4700 rpm |
| Small saw speed | 13,000 rpm |
| Large saw blade | 8 inches |
| Small saw blade | 4 inches |
| Voltage | 220V/1P/50Hz |
