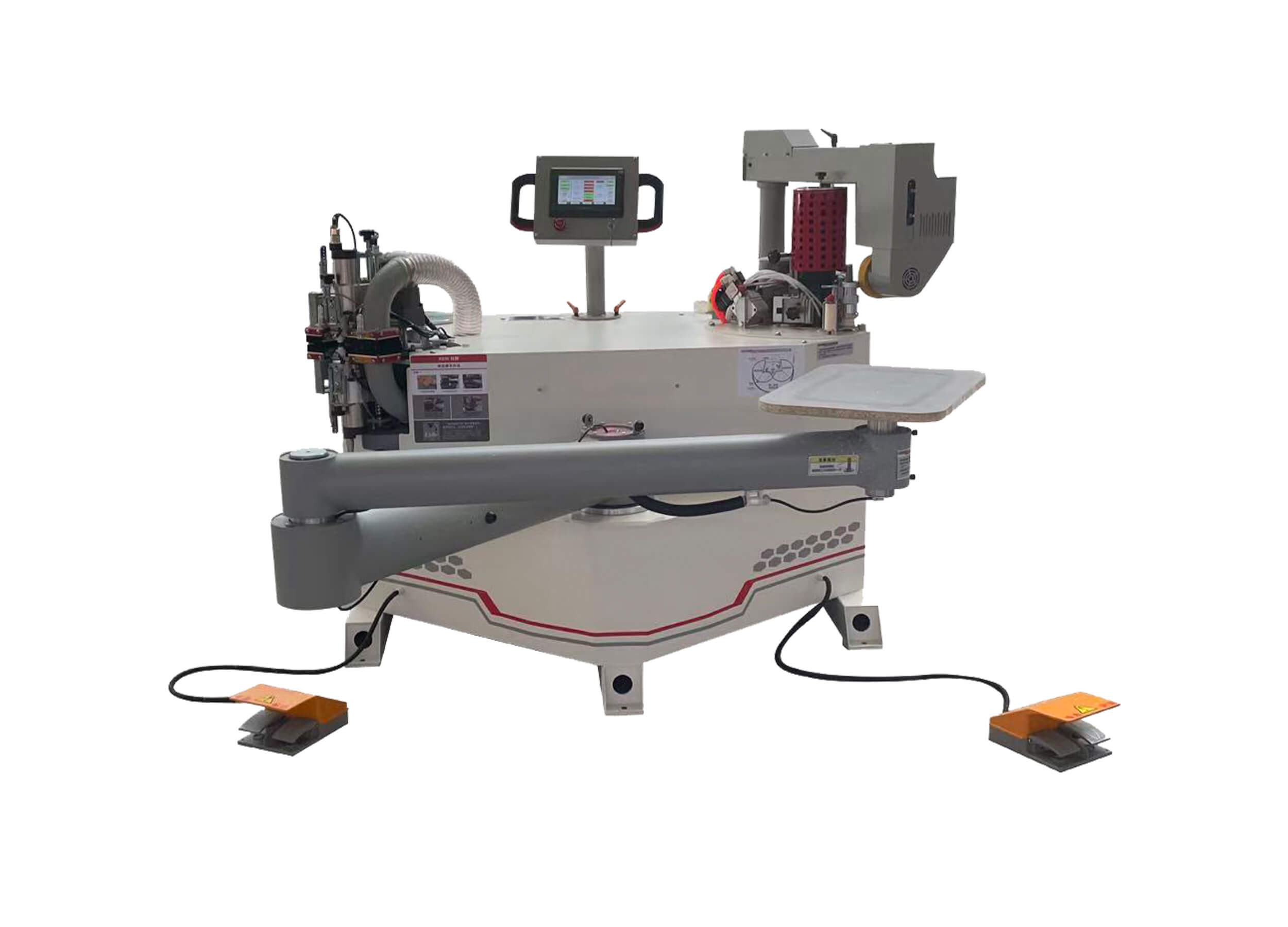

Curved Edge Banding Machine DS-700-3

DS-700-3 curved edge banding machine is specially engineered for custom furniture production, capable of processing curved, shaped and straight wood panels. It supports PVC, melamine, wood veneer and plastic edge banding materials to meet diverse furniture finishing requirements.

This machine adopts EVA hot melt glue system for stable bonding. It completes the whole workflow including gluing, edge applying and profiling trimming in one operation. The touch screen control panel allows operators to adjust working settings conveniently.

Built with vacuum adsorption structure, it firmly holds workpieces during processing to avoid shifting and ensure consistent sealing quality. Equipped with dual trimming modes, it can handle single-side trimming and double upper & lower trimming for different panel thickness.

Product Description

Process curved, irregular shaped boards and straight panels
Compatible with PVC, melamine, wood veneer and plastic edge strips
Integrated gluing, edge banding and profiling trimming in one pass
Stable EVA hot melt glue system for reliable adhesion
Vacuum adsorption holds workpiece firmly to prevent movement
Touch screen operation, easy to use for custom furniture factories

Trimming sheet thickness	<14mm single side trimming, 14-70mm upper and lower double trimming
Edge speed	0-20cm/s
Profiling speed	0-24cm/s
External Vacuum	150mm, air volume: 9800m³/h
Edge material type	pvc/wood veneer/melamine/plastic etc.
Total power	5.7kw
Package Dimensions	1870* 1400* 1530mm
Weight	550kg
Air source pressure	0.6-0.8Mpa
Glue pot capacity	2800ml
Glue pot temperature	110-210℃
Hot Melt Type	EVA
Edge Banding Width	14-70mm
Edge banding thickness	0.5-3mm
Inner arc radius	≥20mm
Voltage	380V/3P/60hz
