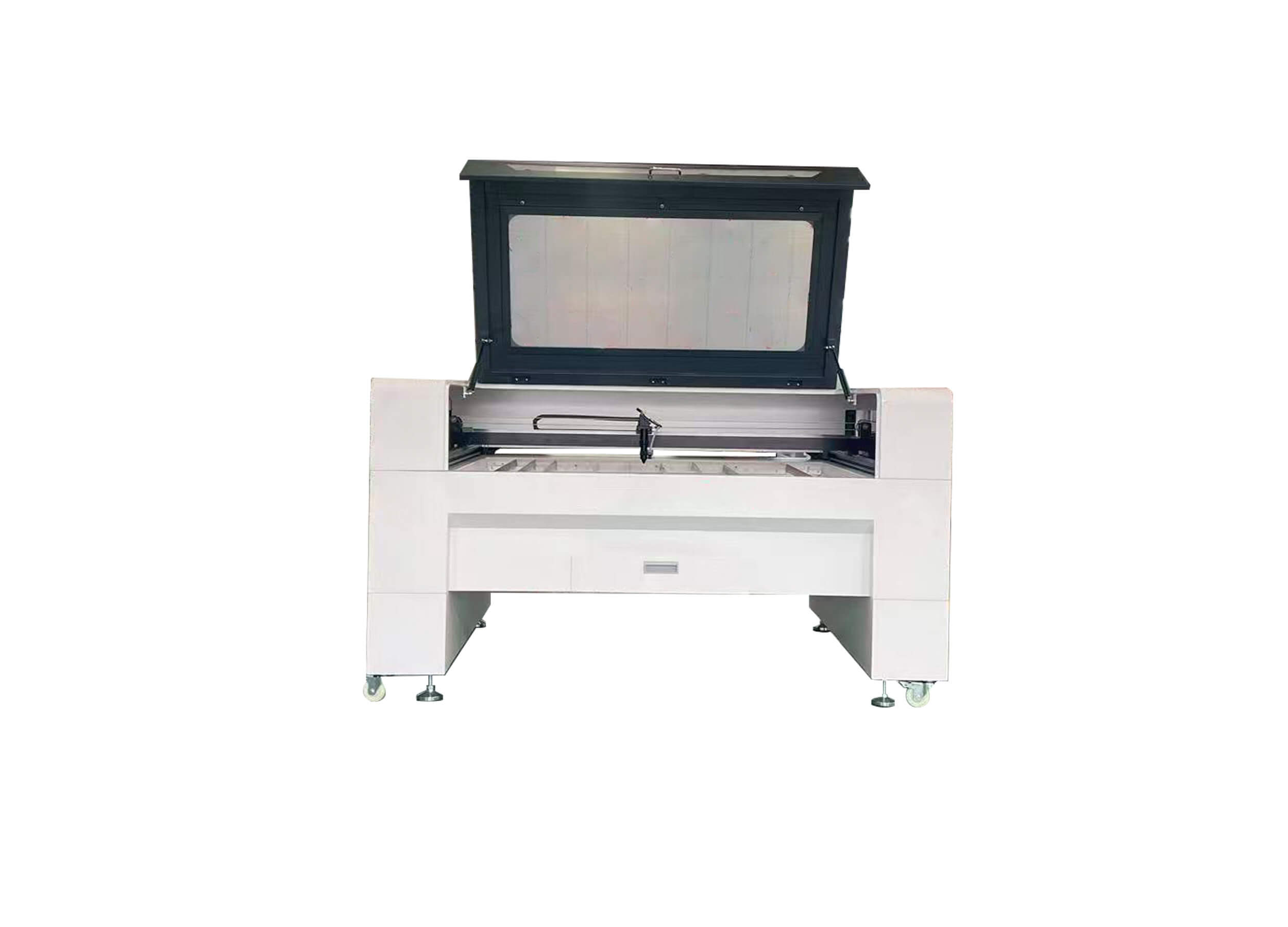

Co2 Laser Machine E1390
This E1390 CO2 laser engraving and cutting machine is designed for versatile non-metal processing. It can handle both fine engraving and contour cutting on a wide range of non-metal materials such as wood, acrylic, leather, fabric, paper and rubber.Equipped with red light positioning, it helps users quickly preview the machining position and avoid material waste. The Ruida control system supports offline work via USB, so you can run jobs without keeping a computer connected all the time.
You can choose between stepper or servo motors to match your production needs. Two types of worktable, knife strip or honeycomb table, are available for different workpieces. The machine accepts many common graphic file formats, making it easy to import designs from most design software.Built with an exhaust fan and reliable cooling system, it keeps the working area clean and maintains stable laser performance during long continuous runs. It is a flexible all-round machine for custom sign making, gift engraving, leather cutting and wood art production.
Product Description
- 3-in-1 function: engraving, scanning and cutting for non-metals
- Red light positioning for fast preview & material saving
- USB offline control, flexible operation
- Optional motor and worktable types for different jobs
- Supports multiple graphic formats, easy design import
- Efficient exhaust & cooling system for long-hour production
X,Y axis working area 1300*900mm (Optional: 1610, 1325, customized) Function Cut/ Scan/ Engrave Laser tube 100-180W SPT Laser tube (Optional: RECI, SHENLEI, CDWG) Positioning method Red light location Control system Ruida control system with USB offline interface (Optional: other) Motor&driver Stepper motor (Optional: Servo motor) Working desk Knife strip (Optional: honeycomb) Transmission system Shanghai Fulong belt Working table Blade table Cooling method CW5200 Cutting speed 0~36000mm/min Lifting stroke 0~25cm Engraving speed 0~64000mm/min Repeat positioning accuracy 0.01mm Resolution 0.025mm Max,scanning accuracy 2500DPI Supported formats AL,CDR,BMP,JPD,DST,PLT,DXF,DWG,TIFF,PSD Exhaust fan 550W Voltage AC220V/50Hz/single phase Offer free of harge Another set of American 26 lens and mirrors, one pair of Power supply eye-protective glasses Environment 220/50Hz, 110V/60Hz, Customized Protection system 0~45 degrees Celsius, humidity 0~95%(free of condensed)
