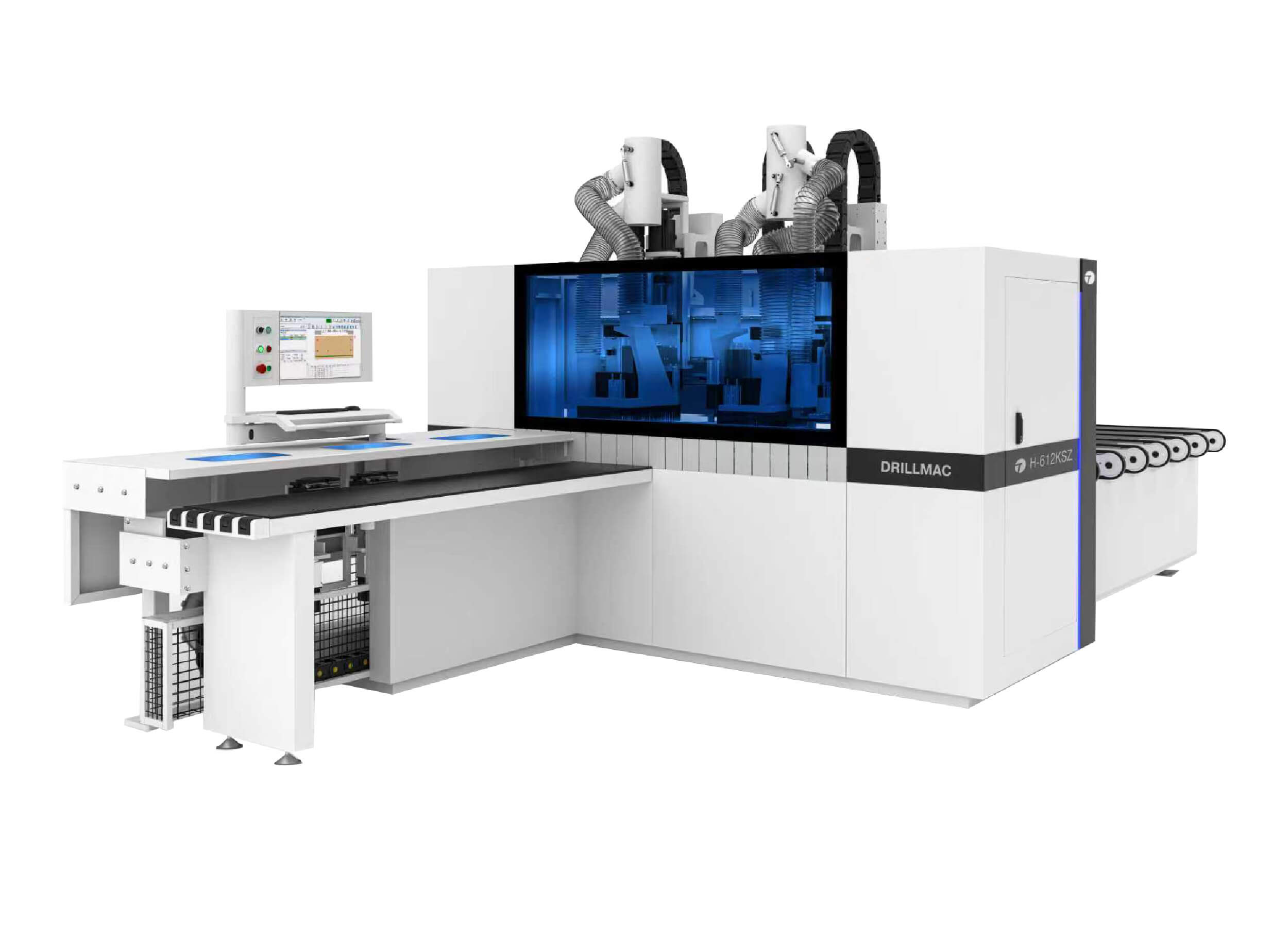

Six-Sided Drilling Machine

This CNC six-sided drilling machine is specially built for panel furniture manufacturing. It can finish drilling holes on six sides of the workpiece in a single loading operation, eliminating repeated manual flipping of boards.

Equipped with multi-group vertical and horizontal drilling units, it handles hinge holes, pin holes and connecting holes for cabinets and wardrobes accurately. The air flotation feeding platform reduces friction during board transportation, protecting panel surfaces while ensuring smooth feeding.

The intelligent control system supports fast program import and automatic positioning. It maintains stable drilling accuracy for mass production, reducing human errors and lowering labor costs.

Product Description

One-time clamping for six-sided drilling, no manual board flipping
Multi vertical & horizontal drill heads for various hole types
Air flotation feeding platform protects panel surfaces
Intelligent automatic positioning, high drilling precision
Stable performance for mass custom furniture production
Reduces labor input and speeds up whole production line

Dimensions	5050mm2790mm2200mm
Plate length	70 – 2800mm
Plate width	35 -1200mm （35-50mm L≤1000）
Plate thickness	9-50mm
Vertical Drill	2 x 12No.
Horizontal Drill	8 x 2No.
Motor Speed	3400rpm(r/min)
Vertical Drill	3 x 3No.
Motor Speed	3400rpm(r/min)
Power	2 x 3.5kW
Handle Diameter	1/2
Rpm	18000rpm(r/min)
Feeding table type	Air flotation platform
Feeding table height	950mm
Working voltage	380/50V/50Hz
Working air pressure	0.7-0.8MPA
Weight	3800kg
