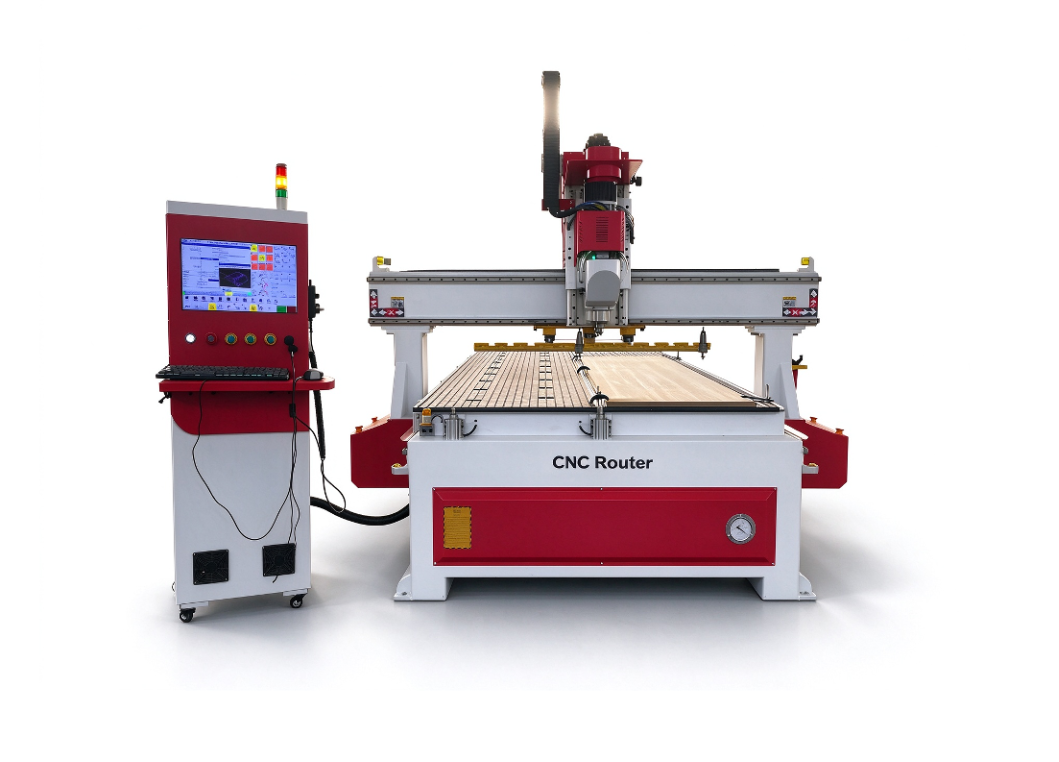

ATC-CNC-Router 1530

The ATC CNC Router 1530 is designed to streamline complex multi-process panel fabrication in custom furniture factories. Its automatic tool change system can swap different tools quickly during one continuous job, allowing you to complete cutting, grooving, drilling and engraving in a single workpiece setup.

Powered by reliable servo drive system and LNC control system, the machine runs smoothly and maintains outstanding carving accuracy even during long non-stop working hours. The vacuum adsorption table firmly holds various wood panels to prevent shifting during processing.

Fitted with premium branded electrical and sensor components, this CNC router guarantees stable performance and low maintenance cost. The automatic tool setter helps calibrate tool height easily to keep consistent cutting depth. Widely used for MDF, plywood, solid wood and acrylic materials, it is the ideal equipment for cabinet doors, wardrobe panels, decorative carvings and sign making.

Product Description

Automatic tool change with 8-slot moving tool magazine, no manual tool replacement
Integrate cutting, grooving, drilling and engraving in one machine
Vacuum table holds panels tightly for precise processing
Stable servo drive system for long continuous production
Automatic tool setting ensures uniform cutting depth
Suitable for wood panels, MDF, plywood and acrylic

Item	Specification
Working dimensions	1500 x 3000 mm
Z-axis travel	200 mm
Control system	Taiwan LNC
Motors and drives	Leadshine AC servo motors and drives
Spindle	9 kW HQD air-cooled ATC spindle
Tool magazine	Traveling tool magazine (8-slot)
Inverter	Folinn
Guide rails	30 mm
Table surface	Vacuum table
Vacuum pumps	5.5 kw air-circulation pumps (2 units)
Tool setting	Automatic tool setter
Electrical components	Schneider Electric
Limit switches	Omron
Voltage	380 V (customizable)
