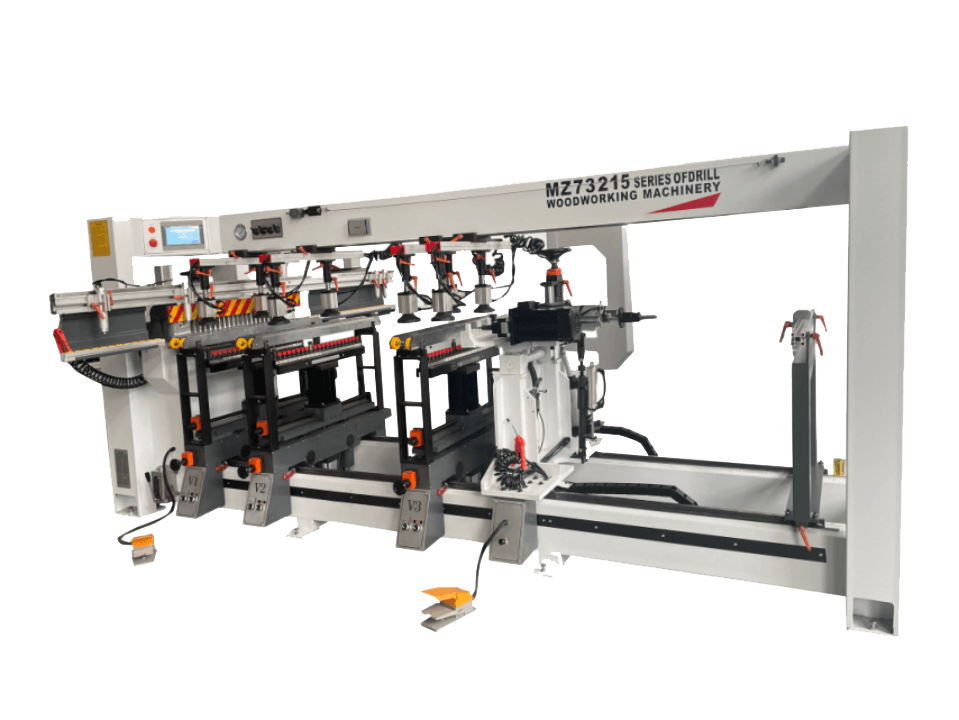

5-Row Drilling Machine MZ73215

This 5-row multi spindle drilling machine adopts a heavy welded frame structure to maintain stable performance during long batch drilling jobs. Equipped with multiple drill heads arranged in five rows, it can complete a large number of vertical and horizontal holes in one single pass instead of repeated manual positioning.

The machine features reliable pneumatic clamping system that firmly locks workpieces to prevent shifting during drilling, ensuring uniform hole spacing and neat hole walls. The control panel is simple and intuitive for operators to set drilling tasks quickly.

It is widely used for drilling hinge holes, assembly holes and connection holes on MDF, particle board, plywood and solid wood panels. Ideal equipment for medium.

Product Description

5 drill units, realize multi-direction batch drilling in single clamping
Heavy rigid welded frame, keeps high precision under long continuous production
Touch screen control, store multiple drilling programs for fast product switching
Pneumatic clamping system, avoid workpiece movement and guarantee consistent hole accuracy
Wide application for cabinet, wardrobe and custom furniture hole processing
Reliable electric system, stable running and simple daily maintenance

Max. drilling diameter	35mm
Max. drilling depth	60mm
Max. processing hole distance	640-2500mm
Number of drills	21*5 rows
Spindle speed	2840rpm
Motor power	7.5kw
Working Air pressure	0.6-0.8Mpa
Overall size	3600x1200x1600mm
Packing size	3650x1250x1660mm
Weight	2400kg
