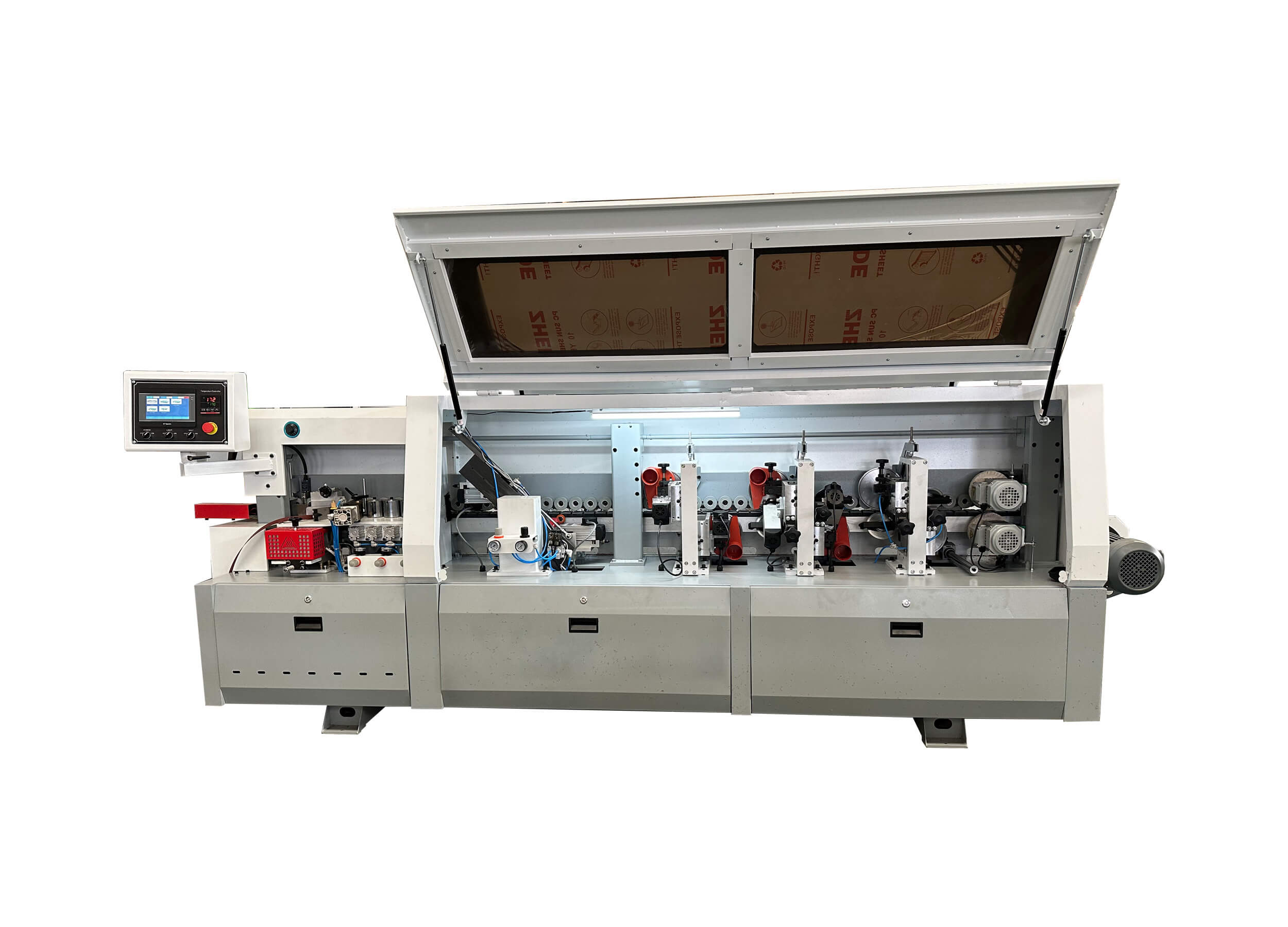

MFES6
The MFES6 edge bander integrates six core processing stations to finish continuous automatic edge treatment for wooden panels. Once the board enters the machine, it can finish edge gluing, trimming, corner rounding, scraping, cleaning and polishing automatically without repeated manual operation.
It comes with a user-friendly touchscreen control panel, allowing operators to quickly adjust settings to fit different edge tapes and board materials. The stable conveying system ensures smooth board feeding and consistent edge quality on every workpiece.
This machine works well for MDF, particle board and plywood, widely used for custom cabinets, wardrobes and other panel furniture. With a solid compact frame, it runs reliably during long shifts
Product Description
- 6-in-1 integrated automatic edge banding stations
- Intuitive touch screen for simple operation
- Stable feeding system for uniform edge effect
- Compatible with multiple panels and edge band materials
- Compact and solid structure, low failure rate
- Produces smooth, beautiful edges for furniture
| Total machine power | 7.4kw |
| Transfer speed | 15-23m/min |
| Sheet thickness | 10-60mm |
| Edge band thickness | 0.4-3mm |
| Sheet length | ≥150mm |
| Sheet width | ≥60mm |
| Working pressure | 0.8Mpa |
| Minimum sheet size | 300(L)*60(W)mm 150(L)*150(W)mm |
| Dimensions (length*width*height mm) | 3600*650*1400mm |
| Weight | 750kg |
| Voltage | 380V/3P/60HZ （Customizable） |
