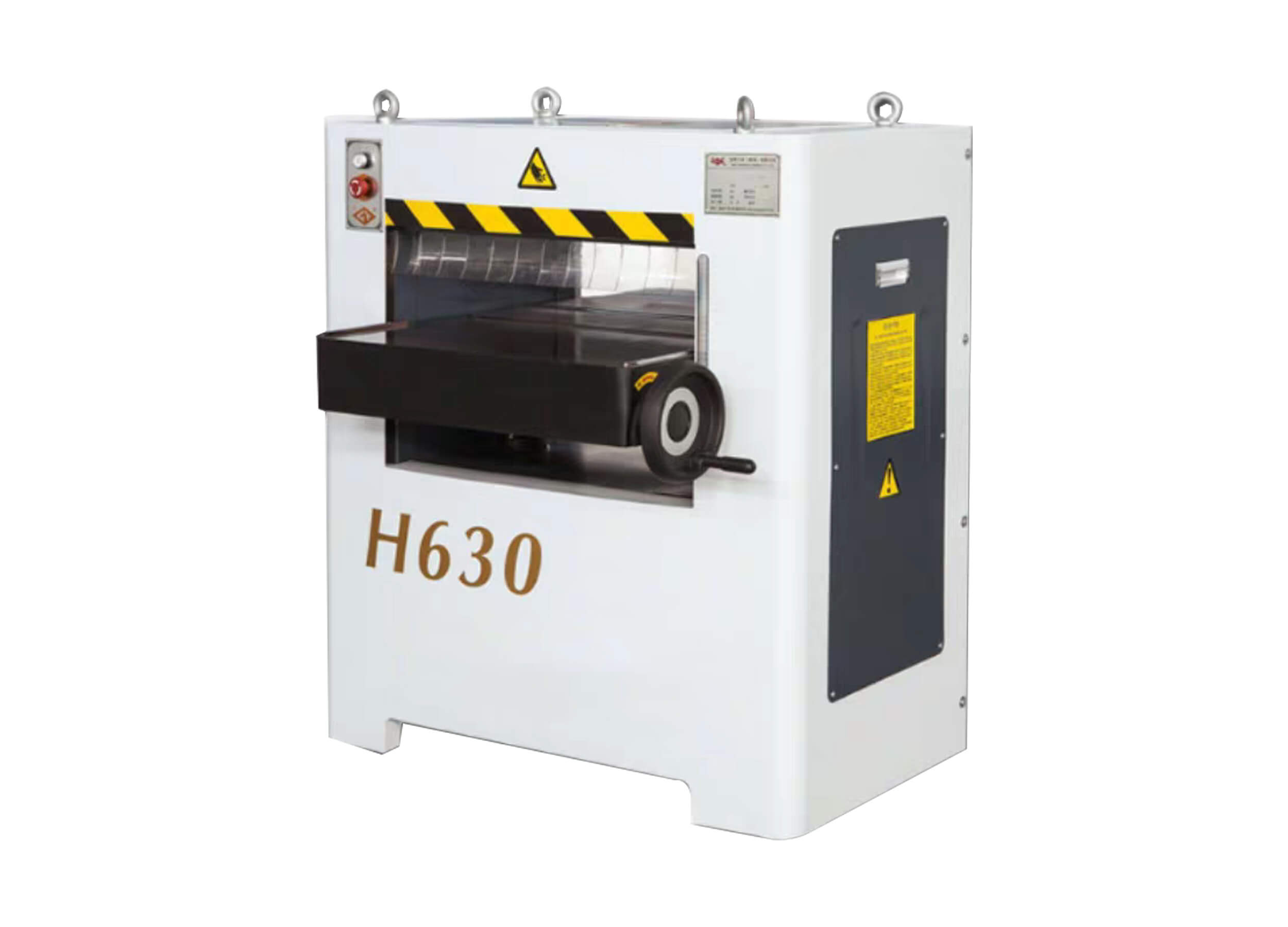

Thickness Planer H630

The H630 thickness planer is built for high-volume wood thicknessing tasks. It accurately calibrates wood boards to an even target thickness, removing excess material from the top surface to achieve identical thickness across every workpiece.

Equipped with stable feeding rollers, it pushes timber steadily through the machine for continuous and consistent processing. The precision cutter head creates clean, smooth surfaces with minimal burrs, greatly improving the quality of finished wood pieces.

The robust solid frame effectively reduces vibration during operation, maintaining stable performance during long shifts. It comes with a dedicated dust outlet to quickly evacuate wood chips, keeping the working area clean and protecting cutting blades.

This thicknesser works well for solid wood furniture, doors and cabinet production. It is essential equipment after surface jointing, helping users standardize board dimensions and boost overall workshop productivity.

Product Description

  • Precise thicknessing to get uniform board thickness
  • Stable feeding system for continuous wood processing
  • High-performance cutter head for smooth, clean wood surfaces
  • Heavy-duty frame reduces vibration for stable operation
  • Built-in dust port for efficient chip removal
  • Ideal for solid wood furniture, door and cabinet workshops
Spindle speed 5500rpm
Feed speed 7-12m/min
Maximum planing width 630mm
Maximum planing thickness 200mm
Minimum planing thickness 5mm
Number of blades 4
Cut shaft cutting circle diameter 105mm
Dust removal hole diameter 105mm
Motor power 7.5kw 380V
Dimensions 1053*849*1143mm
Weight 500kg
