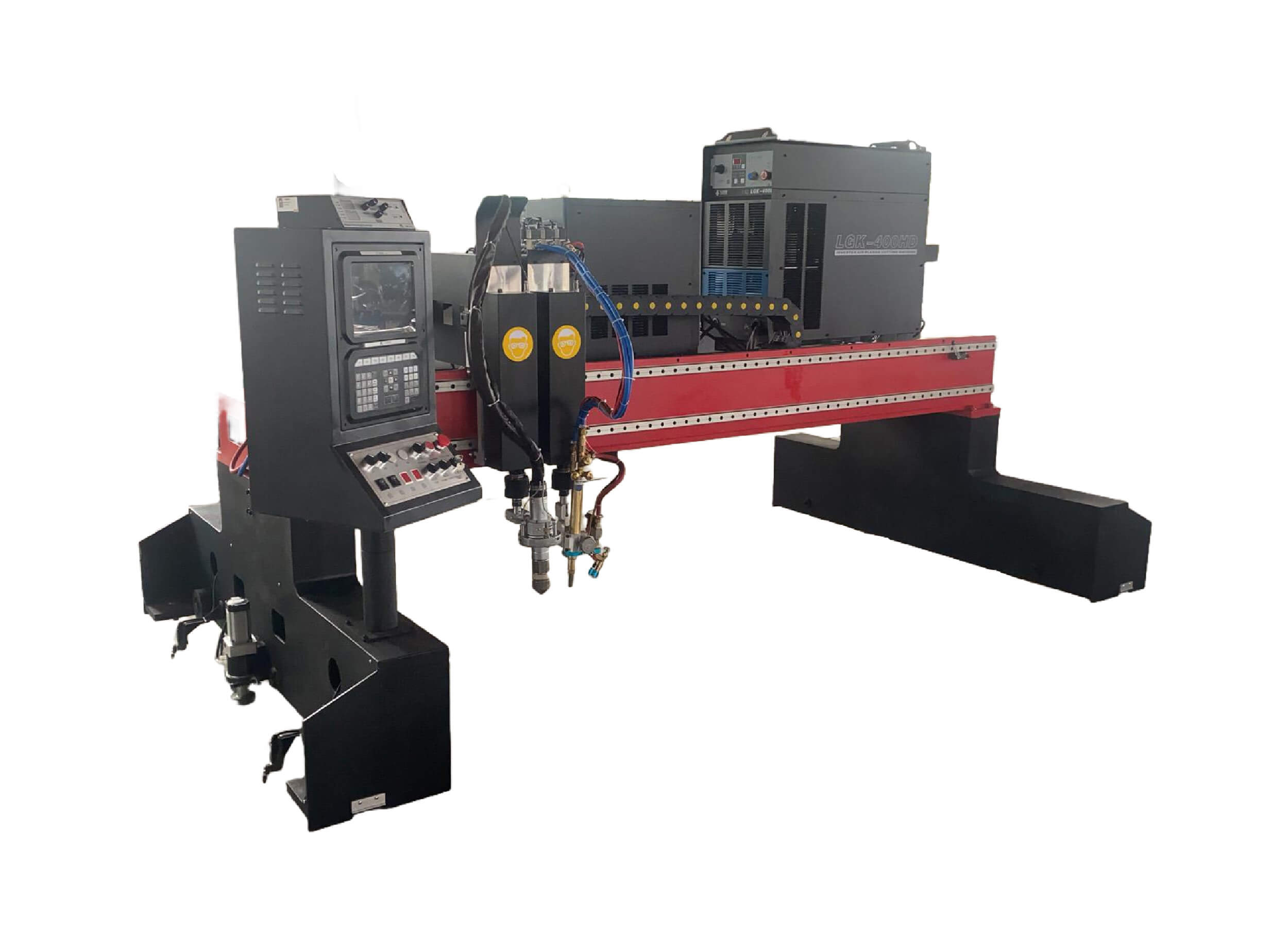

Gantry CNC Plasma & Flame Cutting Machine

Our gantry CNC plasma cutting machine is built for heavy-load industrial metal cutting tasks. It adopts a rigid gantry frame structure with dual-side servo drive, ensuring steady movement even when working on large-size metal sheets for long continuous shifts.

It integrates dual cutting functions: plasma cutting for medium-thin metal plates and flame cutting for thick carbon steel. The torch height control system automatically adjusts the cutting head height during operation, maintaining consistent cutting clearance, protecting the torch and producing clean, uniform cutting edges.

The machine supports optional plasma power sources to match different cutting requirements. It can handle flat metal sheets and also process metal pipes for diversified production needs. The intuitive control panel makes programming and operation straightforward for operators.

Product Description

Heavy rigid gantry frame with dual servo drive for stable long-hour operation
Dual cutting modes: Plasma & Flame for thin and thick carbon steel
Torch height control system protects torch and ensures consistent cutting quality
Support flat plate and pipe cutting for multi-purpose production
Optional plasma power supply to meet different cutting demands
Ideal for steel structure, heavy machinery and large metal fabrication

Rail length	3000mm
Gantry Width	8000mm
Effective Cutting Area	2500x6000mm
Diameter of metal pipes	50mm to 300mm
Drive motor	Dual-drive / Panasonic AC servo motor
Max traveling speed	12000mm/min
Flame Cutting Torch Number	depends
Flame Cutting Thickness	6-150mm
Flame Torch Height Sensor	Torch Height sensor
Flame Cutting Speed	50-800mm/min
Frequency	220V±5%, 380V ±10% for plasma source.
Voltage	50hz
Weight	85kg
Plasma Torch Height Sensor	THC
Plasma power supply	LGK or Hypertherm
Weight	1800kg
