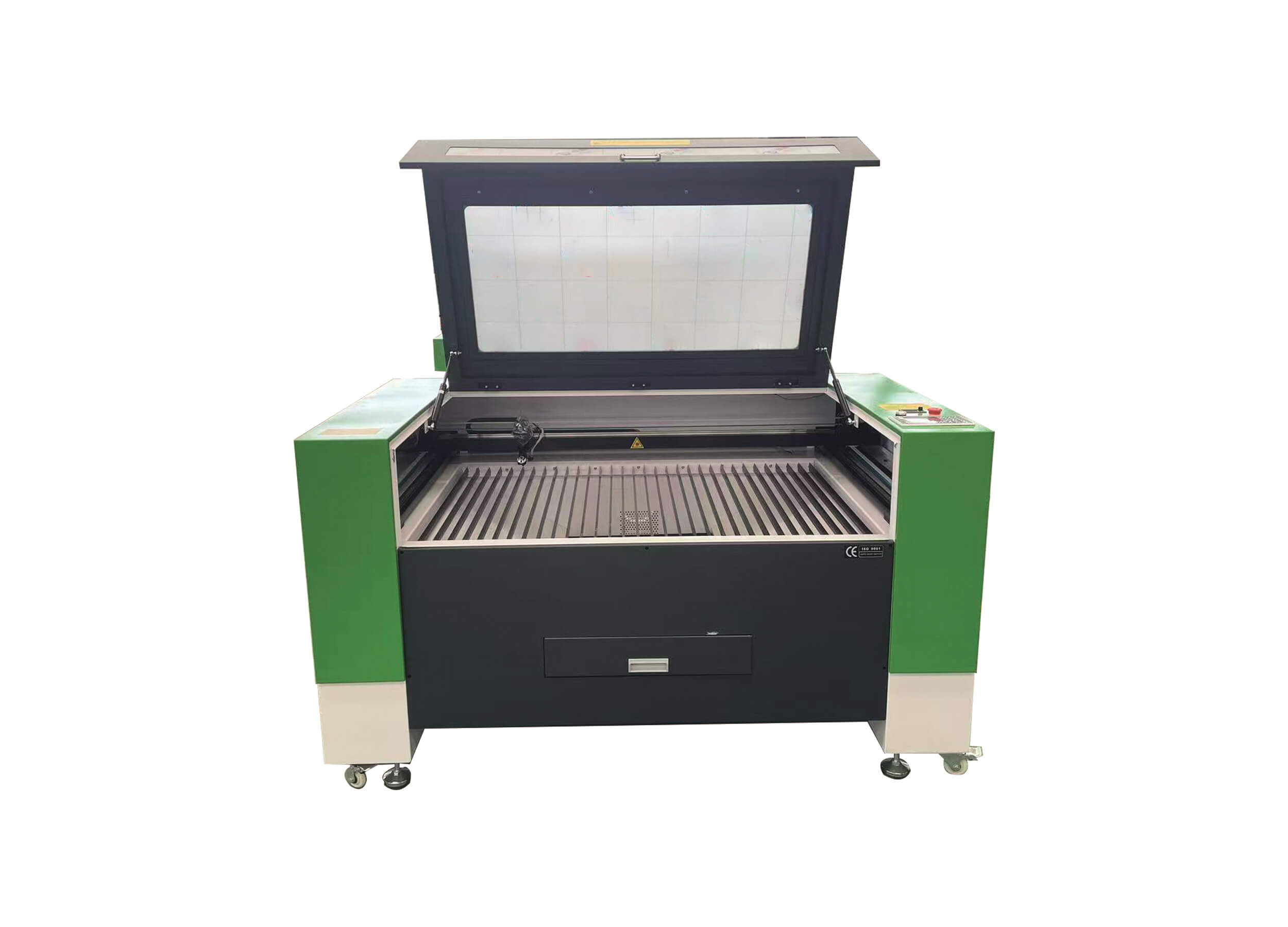

Co2 Laser Machine S1390

This S1390 CO2 laser engraving and cutting machine is designed for versatile non-metal processing. It can handle both fine engraving and contour cutting on a wide range of non-metal materials such as wood, acrylic, leather, fabric, paper and rubber.Equipped with red light positioning, it helps users quickly preview the machining position and avoid material waste. The Ruida control system supports offline work via USB, so you can run jobs without keeping a computer connected all the time.

You can choose between stepper or servo motors to match your production needs. Two types of worktable, knife strip or honeycomb table, are available for different workpieces. The machine accepts many common graphic file formats, making it easy to import designs from most design software.Built with an exhaust fan and reliable cooling system, it keeps the working area clean and maintains stable laser performance during long continuous runs. It is a flexible all-round machine for custom sign making, gift engraving, leather cutting and wood art production.

Product Description

3-in-1 function: engraving, scanning and cutting for non-metals
Red light positioning for fast preview & material saving
USB offline control, flexible operation
Optional motor and worktable types for different jobs
Supports multiple graphic formats, easy design import
Efficient exhaust & cooling system for long-hour production

X,Y axis working area 1300*900mm (Optional: 1610, 1325, customized)
Function Cut/ Scan/ Engrave
Laser tube 100-180W SPT Laser tube (Optional: RECI, SHENLEI,  CDWG)
Positioning method Red light location
Control system Ruida control system with USB offline interface  (Optional: other)
Motor&driver Stepper motor (Optional: Servo motor)
Working desk Knife strip (Optional: honeycomb)
Transmission system Shanghai Fulong belt
Working table Blade table
Cooling method CW5200
Cutting speed 0~36000mm/min
Lifting stroke 0~25cm
Engraving speed 0~64000mm/min
Repeat positioning accuracy 0.01mm
Resolution 0.025mm
Max,scanning accuracy 2500DPI
Supported formats AL,CDR,BMP,JPD,DST,PLT,DXF,DWG,TIFF,PSD
Exhaust fan 550W
Voltage AC220V/50Hz/single phase
Offer free of harge Another set of American 26 lens and mirrors, one pair of
Power supply eye-protective glasses
Environment 220/50Hz, 110V/60Hz, Customized
Protection system 0~45 degrees Celsius, humidity 0~95%(free of condensed)
